Specifications
Frequency Range:350～500 MHz
Insertion Loss ≤ 0.6dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Typ.1.16 / Max.1.20
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.22dB
Amplitude Balance:±0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors:DIN-Female；（7/16）
Power Rating Splitter:250W; Combiner:100W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxidation

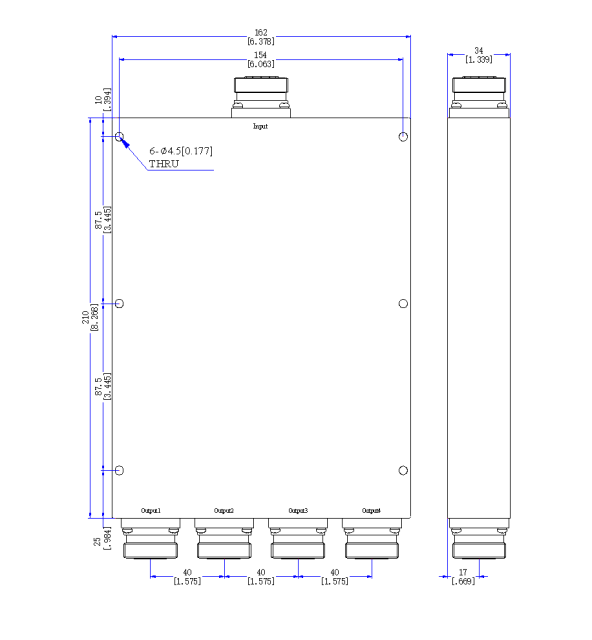

Outline Dimensions:210*162*34（mm）
