Specifications
Frequency Range：350～8500 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss：6.0dB）
Input Port VSWR:Typ.1.18 / Max.1.40
Output Port VSWR :Typ.1.15 / Max.1.25
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female（Stainless steel）；
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

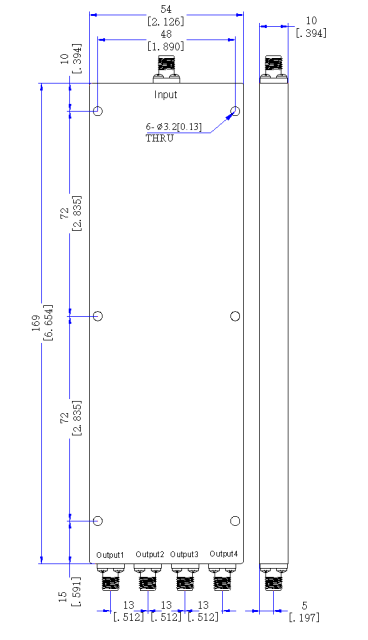

Outline Dimensions:169*54*10（mm）
