Specifications
Frequency Range:360～420 MHz
Insertion Loss ≤ 0.5 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.16 / Max.1.20
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation ≥ 30dB（380-390M）＆ Min.20dB
Amplitude Balance :±0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors:BNC-Female
Power Rating Combiner:40W（10W）
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

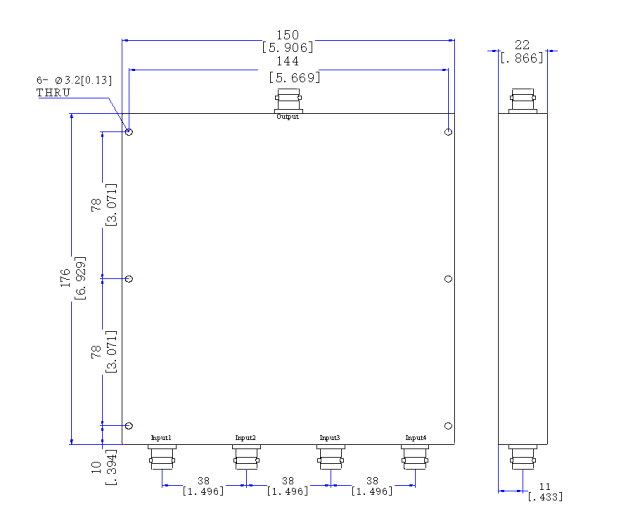

Outline Dimensions:176*150*22（mm）
