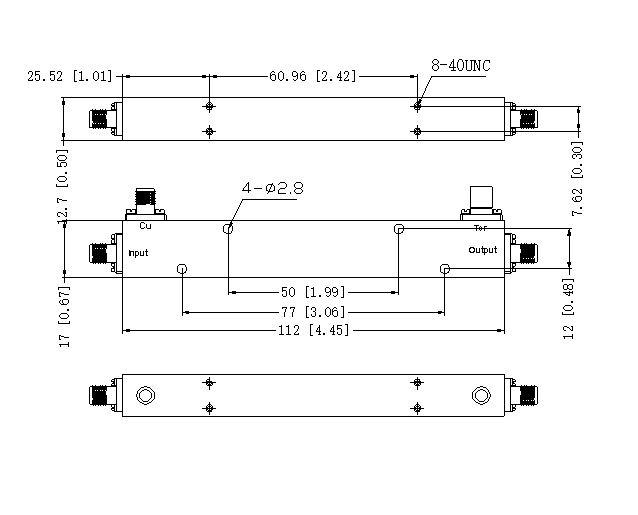

375～6000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-0.375/6-30S
CONTACT US
  • 375～6000 MHz SMA Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：375～6000 MHz

Insertion Loss≤ 0.5dB

VSWR Primary：Type. 1.20 / Max. 1.25

VSWR Secondary：Type. 1.20 / Max. 1.25

Directivity：Min. 18 dB

Frequency Sensitivity：±1.0dB

Nominal Coupling：30±1.6dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：30W

Operation Temperature：-40℃ ~ +70℃

Surface Finishing：Sandblasting natural color conductive oxide
