380～2000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.38/2-3S
CONTACT US
  • 380～2000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:380～2000 MHz

Insertion Loss ≤ 1.2dB（Excluding theoretical loss:4.8 dB）

Input Port VSWR:Typ.1.18 / Max.1.50

Output Port VSWR :Typ.1.15 / Max.1.30

Isolation:Typ.28dB / Min.18dB

Amplitude Balance :±0.6dB

Phase Balance:±6°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating Splitter:10W; Combiner:0.5W

Operation Temperature:-40℃ ~ +70℃

Surface Finishing：Black paint

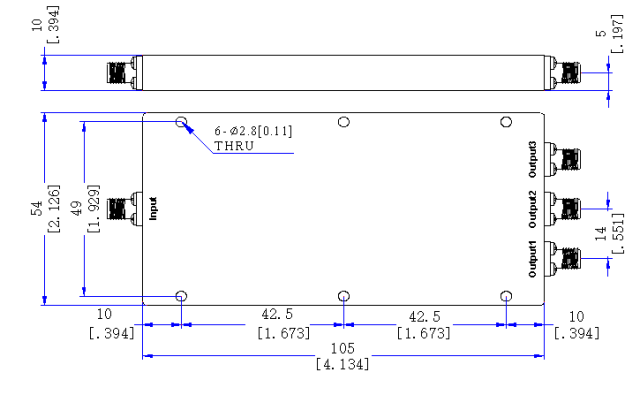

Outline Dimensions：105*54*10（mm）
