Specifications
Frequency Range:400～540 MHz
Insertion Loss ≤ 0.3dB（Excluding theoretical loss:4.8dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter :100W ; Combiner 20W（ per port 10W ）
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

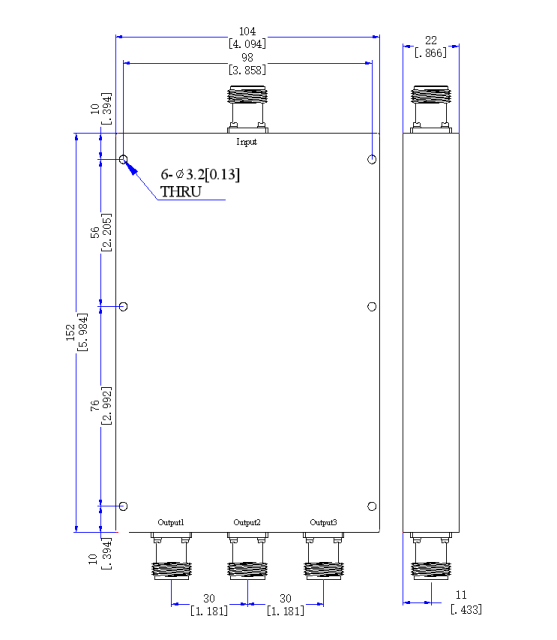

Outline Dimensions:152*104*22（mm）
