Specifications
Frequency Range:400～7500 MHz
Insertion Loss ≤ 1.2dB（Excluding theoretical loss:3.0dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.22dB
Amplitude Balance :±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-40℃ ~ +70℃
Surface Finishing:Black paint

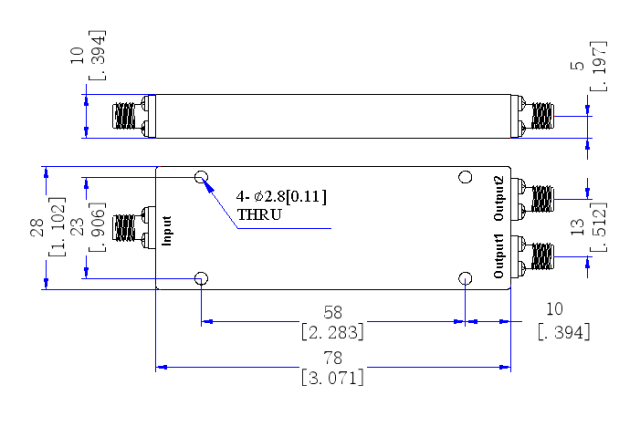

Outline Dimensions:78*28*10（mm）
Weight:60（g）
