430～460 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.43/0.46-2S
CONTACT US
  • 430～460 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:430～460 MHz

Insertion Loss ≤ 0.4dB（Excluding theoretical loss:3.0dB）

Input Port VSWR:Typ.1.16 / Max.1.20

Output Port VSWR :Typ.1.12 / Max.1.20

Isolation:Typ.26dB / Min.20dB

Amplitude Balance:±0.2dB

Phase Balance :±2°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female；

Power Rating Splitter:10W; Combiner:1W

Operation Temperature:-40℃ ~ +75℃

Surface Finishing:Black paint

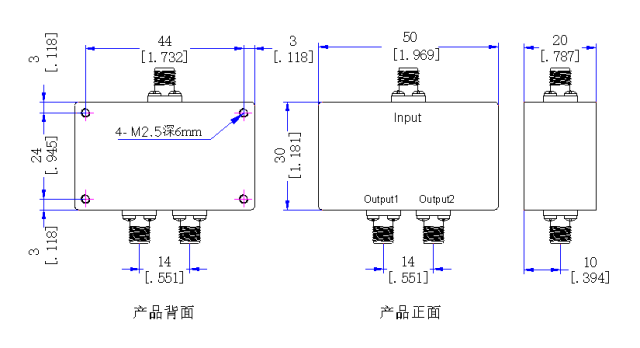

Outline Dimensions:50*35*14（mm）
