Specifications
Frequency Range:450～860 MHz
Insertion Loss ≤ 0.3dB（Excluding theoretical loss:3.0dB）
Input Port VSWR:Typ.1.16 / Max.1.2
Output Port VSWR :Typ.1.12 / Max.1.2
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:200W; Combiner:20W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

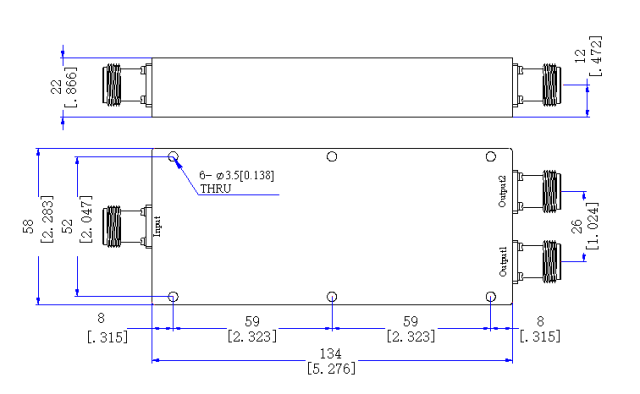

Outline Dimensions:134*58*22（mm）
Weight：300（g）
