Specifications
Frequency Range:470～860 MHz
Insertion Loss ≤ 0.6 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.16 / Max.1.2
Output Port VSWR:Typ.1.12 / Max.1.2
Isolation:Typ.26dB / Min.20dB
Amplitude :Balance ±0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:BNC-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Blue paint

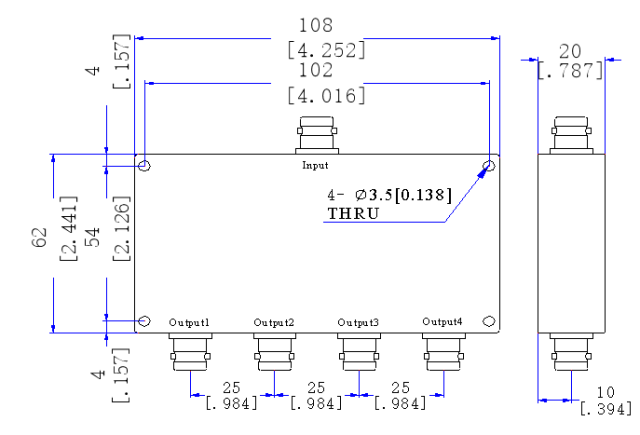

Outline Dimensions:108*62*20（mm）
Weight:400（g）
