470～860 MHz TNC Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.47/0.86-2T
CONTACT US
  • 470～860 MHz TNC Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:470～860 MHz

Insertion Loss ≤ 0.4 dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR:Typ.1.16 / Max.1.2

Output Port VSWR:Typ.1.12 / Max.1.2

Isolation:Typ.26dB / Min.20dB

Amplitude Balance:±0.2dB

Phase Balance :±2°

Impedance:50 Ohms

Input/Output Connectors :TNC-Female

Power Rating Splitter:30W; Combiner:2W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Blue paint

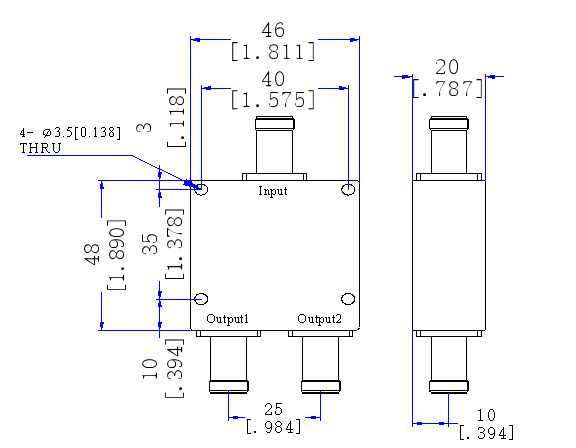

Outline Dimensions:48*46*20（mm）

Weight:100（g）
