Specifications
Frequency Range:470～860 MHz
Insertion Loss ≤ 0.8dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.16 / Max.1.2
Output Port VSWR :Typ.1.12 / Max.1.2
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:TNC-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Blue paint

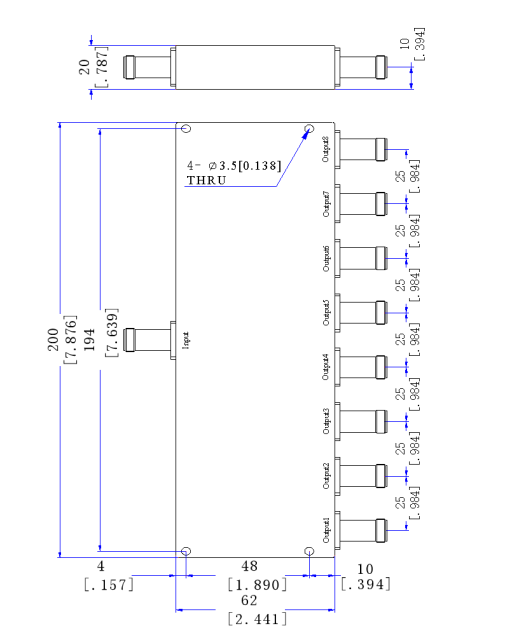

Outline Dimensions:200*68*20（mm）
Weight:750（g）
