Home > All Collections > 50～5000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 50～5000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 50～5000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

50～5000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.05/5-16S
CONTACT US
  • 50～5000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：50～5000 MHz

Insertion Loss ≤ 28dB

Input Port VSWR：Typ.1.18 / Max.1.25

Output Port VSWR ：Typ.1.18 / Max.1.25

Isolation：Min.22dB

Amplitude Balance ：±0.8dB

Phase Balance：±8°

Impedance：50 Ohms

Input/Output Connectors ：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

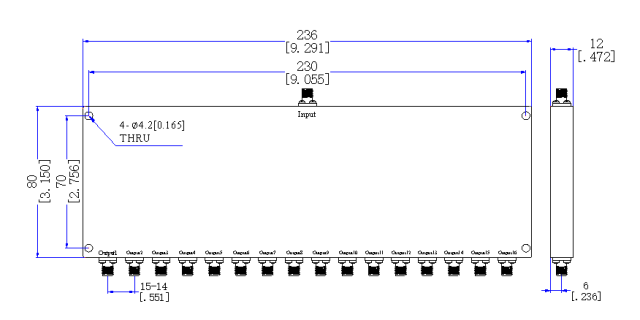

Outline Dimensions：80*236*12（mm）

Weight：575（g）
