Specifications
Frequency Range：500～10000 MHz
Insertion Loss≤ 2.2dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.15 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female（Stainless steel）；
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

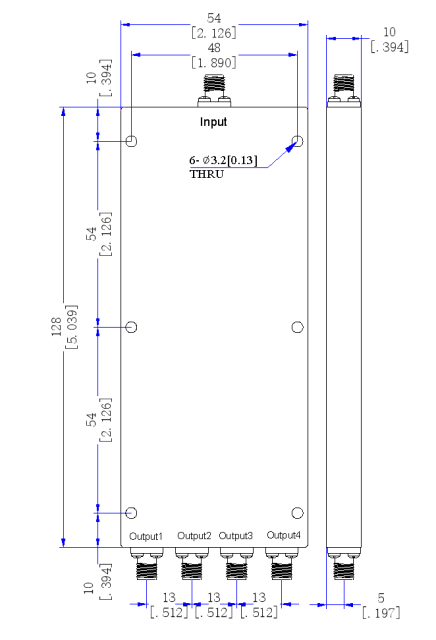

Outline Dimensions:128*54*10（mm）
Weight:190（g）
