Specifications
Frequency Range:500～18000 MHz
Insertion Loss≤4.0dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Max.1.70
Output Port VSWR:Max.1.50
Isolation :Min.16dB
Amplitude Balance:±0.5dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:30W; Combiner:1W
Operation Temperature:-40℃ ~ +80℃
Surface Finishing:Black paint

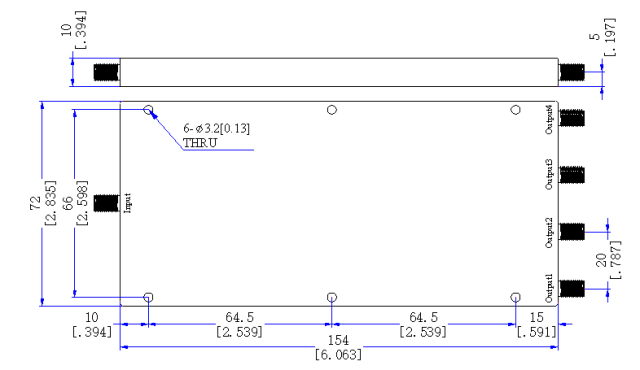

Outline Dimensions:154*72*10（mm）
Weight:340（g）
