Specifications
Frequency Range:500～18000 MHz
Insertion Loss≤6.0 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.5 / Max.2.0
Output Port VSWR:Typ.1.3 / Max.1.6
Isolation :Typ.21dB / Min.14dB
Amplitude Balance:±0.8dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

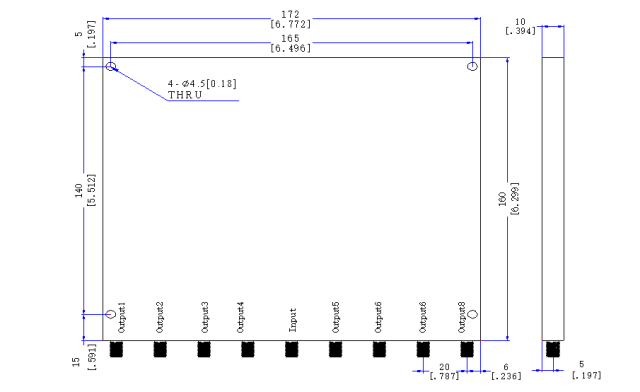

Outline Dimensions:172*160*10（mm）
Weight:680（g）
