Specifications
Frequency Range:500～3000 MHz
Insertion Loss ≤ 1.5dB（Excluding theoretical loss:7.8dB）
Input Port VSWR:Typ.1.22 / Max.1.30
Output Port VSWR:Typ.1.20 / Max.1.30
Isolation:Typ.24dB / Min.18dB
Amplitude Balance:±0.6dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint
DC Current:0.77A（193mA each）port

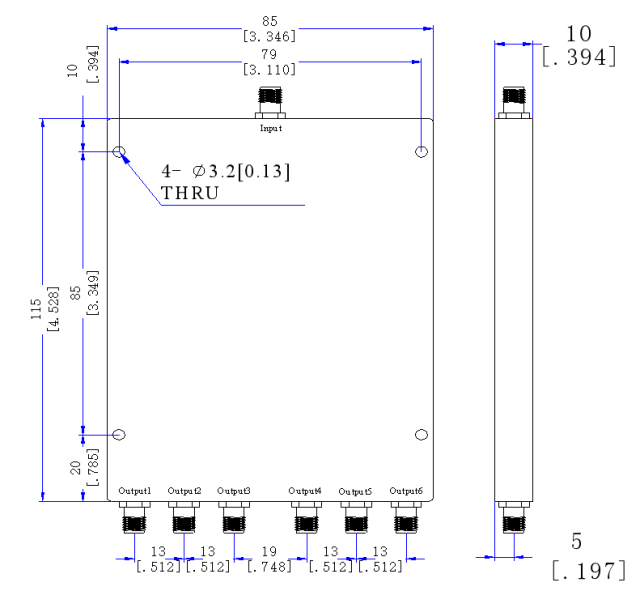

Outline Dimensions:115*85*10（mm）
Weight:220（g）
