Specifications
Frequency Range:500～6000 MHz
Insertion Loss ≤ 4.8dB（Excluding theoretical loss:12.0dB）
Input Port VSWR: Typ.1.26 / Max.1.4
Output Port VSWR :Typ.1.18 / Max.1.3
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.5dB
Phase Balance :±8°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

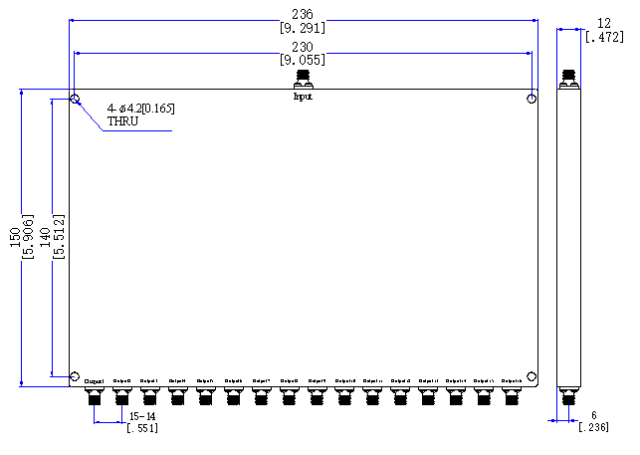

Outline Dimensions:150*236*12（mm）
Weight:950（g）
