Specifications
Frequency Range:500～6000 MHz
Insertion Loss≤ 3.8dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.13 / Max.1.3
Output Port VSWR:Typ.1.18 / Max.1.5
Isolation :Typ.28dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Combiner:2W;20dbm
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

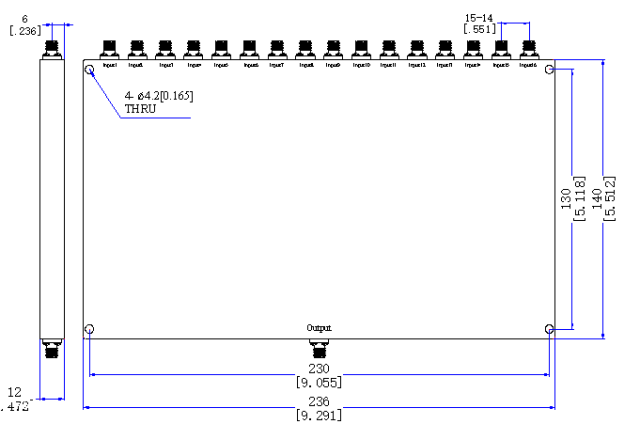

Outline Dimensions:140*236*12（mm）
Weight:930（g）
