500～6000 MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.5/6-24S
CONTACT US
  • 500～6000 MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:500～6000 MHz

Insertion Loss ≤ 6.0dB（Excluding theoretical loss:13.8dB）

Input Port VSWR:Typ.1.26 / Max.1.50

Output Port VSWR:Typ.1.16 / Max.1.30

Isolation ≥ 18dB

Amplitude Balance:±1.0dB

Phase Balance:±10°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female（Passivated Stainless Steel）

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

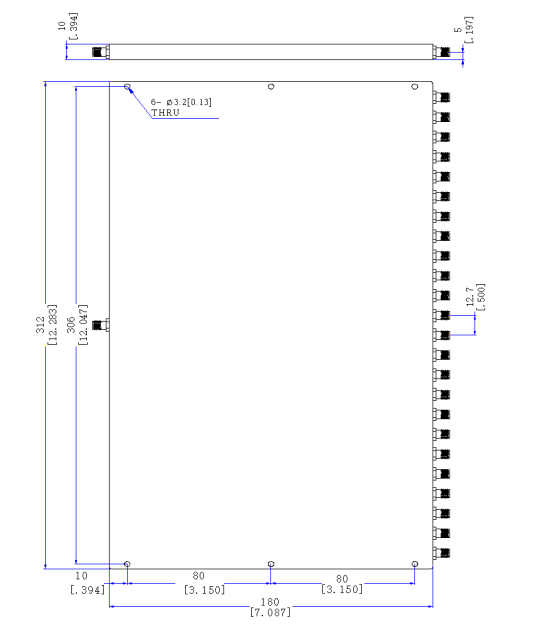

Outline Dimensions:180*312*10（mm）
