Specifications
Frequency Range:500～6000 MHz
Insertion Loss≤ 2.8dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Typ.1.16 / Max.1.60
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation Typ.26dB / Min.16dB
Amplitude Balance:±0.3dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating:Splitter:60W; Combiner:3W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint

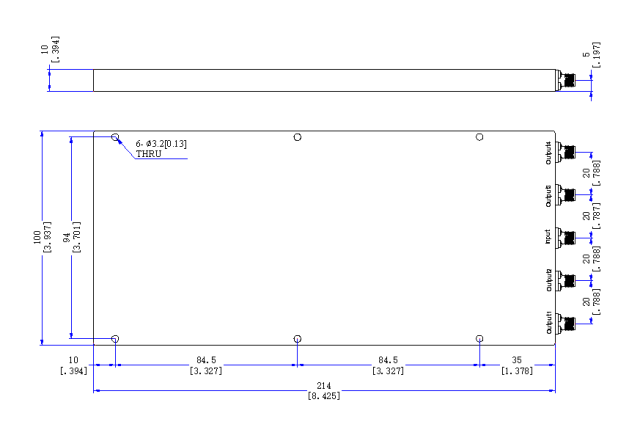

Outline Dimensions:100*214*10（mm）
