Specifications
Frequency Range:500～6000 MHz
Insertion Loss≤ 1.8dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Gray paint

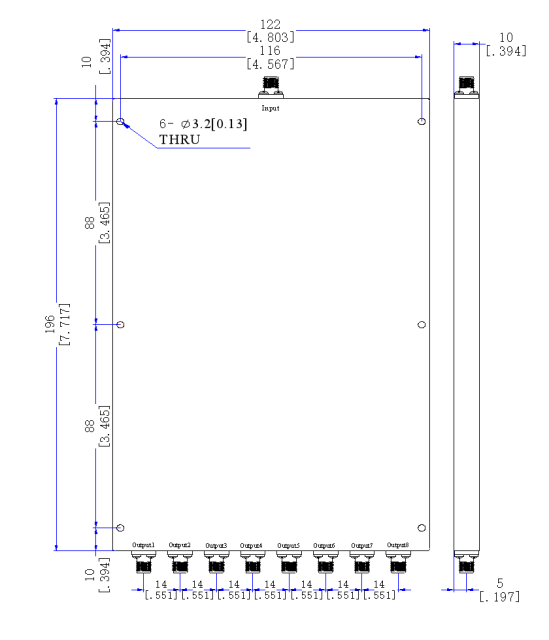

Outline Dimensions:196*122*10（mm）
Weight:750（g）
