Specifications
Frequency Range:500～6000 MHz
Insertion Loss≤3.5dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR≤1.60: 1（500-600M）＆1. 40: 1（600-6000M）
Output Port VSWR:Typ.1.16 / Max.1.30
Isolation :Min.16dB
Amplitude Balance:±0.3dB
Phase Balance:±8°
Impedance：50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:50W; Combiner:3W
Operation Temperature:-40℃ ~ +75℃
Surface Finishing:Black paint

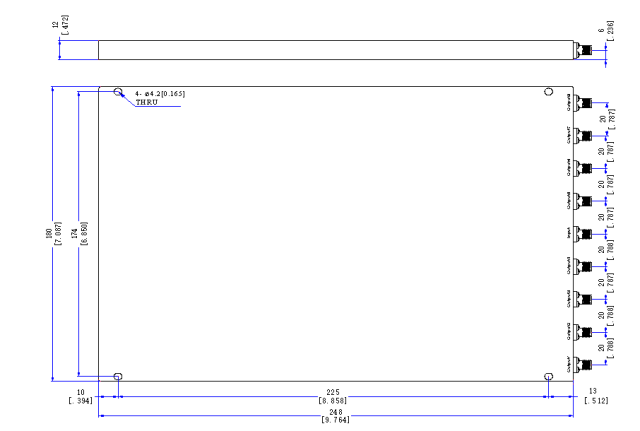

Outline Dimensions:248*180*12（mm）
