Specifications
Frequency Range:500～6000 MHz
Insertion Loss≤ 3.0dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.30 / Max.1.6
Output Port VSWR:Typ.1.15 / Max.1.3
Isolation:Typ.25dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:80W; Combiner:5W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

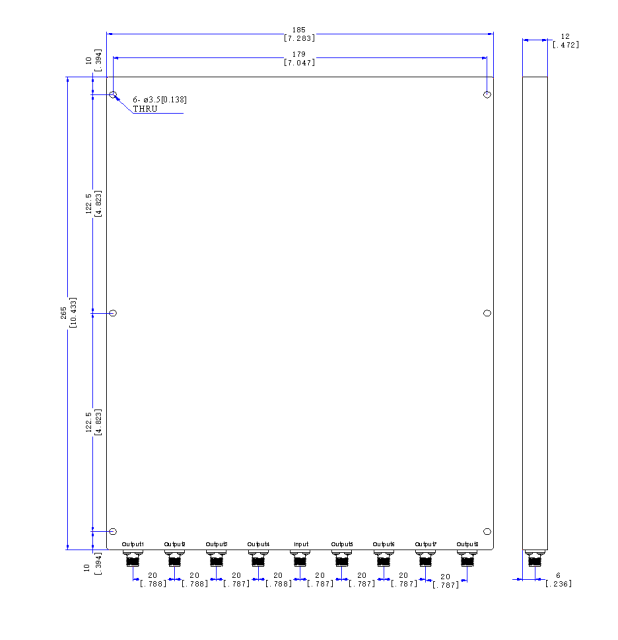

Outline Dimensions:265*185*12（mm）
Weight:1500（g）
