Specifications
Frequency Range：500～8000 MHz
Insertion Loss≤ 3.5dB（Excluding theoretical loss：7.8 dB）
Input Port VSWR：Typ.1.26 / Max.1.55
Output Port VSWR:Typ.1.19 / Max.1.40
Isolation:Typ.25dB / Min.17dB
Amplitude Balance≤ 1.0dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Blue paint

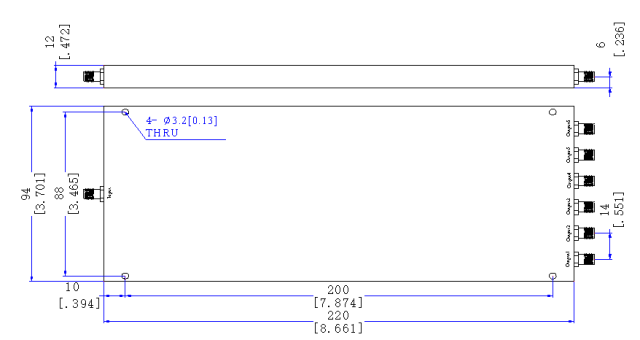

Outline Dimensions:220*94*12（mm）
Weight:680（g）
