Home > All Collections > 500～8000 MHz SMA Female12 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 500～8000 MHz SMA Female12 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 500～8000 MHz SMA Female12 Way Power Divider 50 Ohm Wide-Band Signal Splitter

500～8000 MHz SMA Female12 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.5/8-12S
CONTACT US
  • 500～8000 MHz SMA Female12 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:500～8000 MHz

Insertion Loss≤5.5dB（Excluding theoretical loss:10.8 dB）

Input Port VSWR:Typ.1.26 / Max.1.65

Output Port VSWR:Typ.1.19 / Max.1.40

Isolation:Typ.25dB / Min.16dB

Amplitude Balance:±1.2dB

Phase Balance:±12°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black  paint

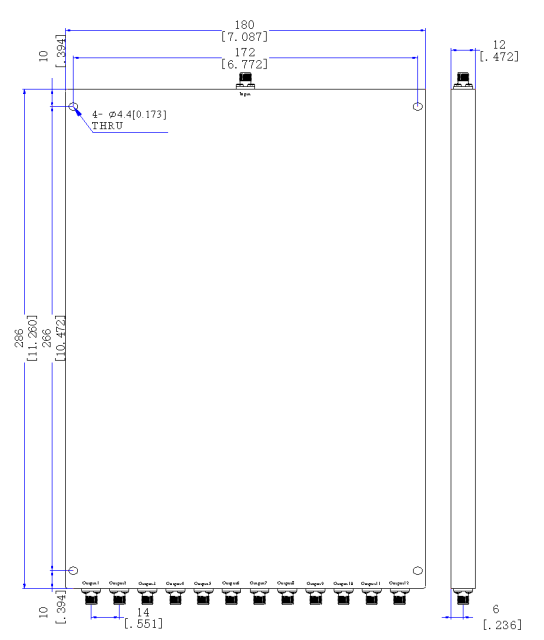

Outline Dimensions:286*180*12（mm）

Weight:1300（g）
