Specifications
Frequency Range:500～8000 MHz
Insertion Loss≤ 4.5dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.25 / Max.1.5
Output Port VSWR:Typ.1.13 / Max.1.3
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

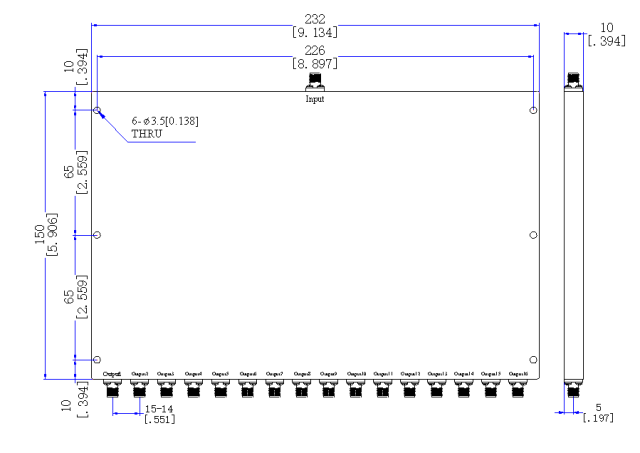

Outline Dimensions:232*150*10（mm）
Weight:820（g）
