Home > All Collections > 5000～6000 SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5000～6000 SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 5000～6000 SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

5000～6000 SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-5/6-32S
CONTACT US
  • 5000～6000 SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:5000～6000 MHz

Insertion Loss≤ 2.0dB（Excluding theoretical loss:15.0 dB）

Input Port VSWR:Typ.1.18 / Max.1.5

Output Port VSWR:Typ.1.12 / Max.1.3

Isolation ≥18dB

Amplitude Balance:±0.4dB

Phase Balance:±6°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:20W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide

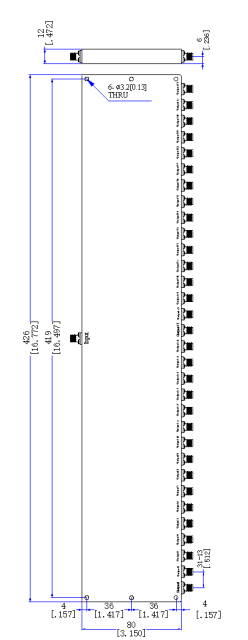

Outline Dimensions:80*426*12（mm）
