Specifications
Frequency Range:600～18000 MHz
Insertion Loss≤2.5dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.3 / Max.1.6
Output Port VSWR:Typ.1.2 / Max.1.5
Isolation :Typ.24dB / Min.18dB
Amplitude Balance:±0.8dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:30W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

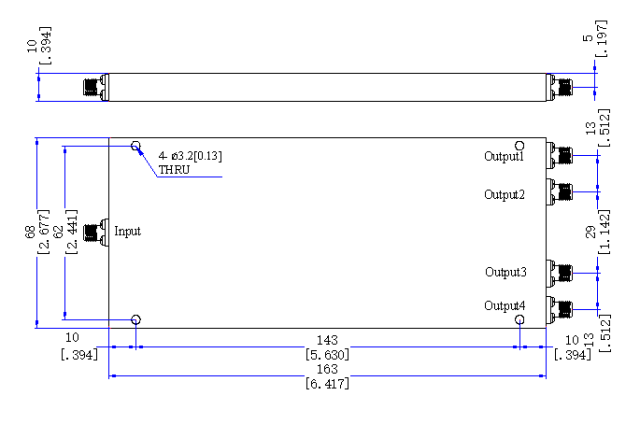

Outline Dimensions:163*68*10（mm）
Weight:305（g）
