Specifications
Frequency Range：600～6000 MHz
Insertion Loss≤2.8dB（Excluding theoretical loss：4.8 dB）
Input Port VSWR：Typ.1.26 / Max.1.5
Output Port VSWR：Typ.1.18 / Max.1.4
Isolation ：Typ.25dB / Min.18dB
Amplitude Balance:±0.8dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

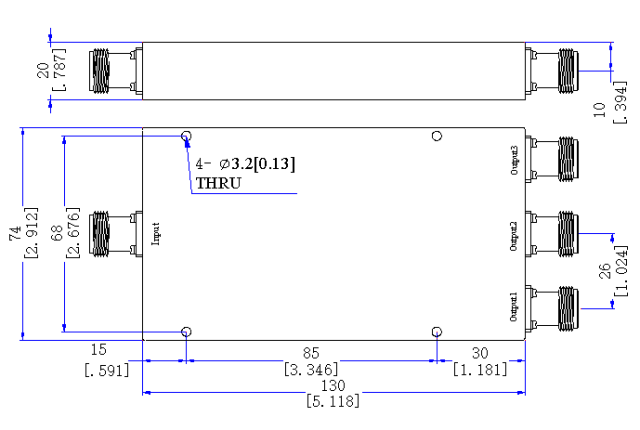

Outline Dimensions:130*74*20（mm）
Weight:510（g）
