Specifications
Frequency Range:600～6000 MHz
Insertion Loss≤ 3.0dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.18 / Max.1.40
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating:Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

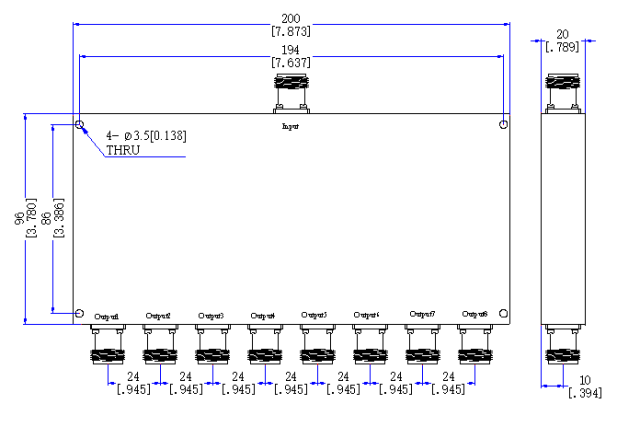

Outline Dimensions:200*96*20（mm）
