Specifications
Frequency Range:600～6000 MHz
Insertion Loss≤3.0dB（Excluding theoretical loss:7.8dB）
Input Port VSWR:Typ.1.22 / Max.1.5
Output Port VSWR:Typ.1.13 / Max.1.3
Isolation :Typ.26dB / Min.18dB
Amplitude Balance≤ 0.8dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

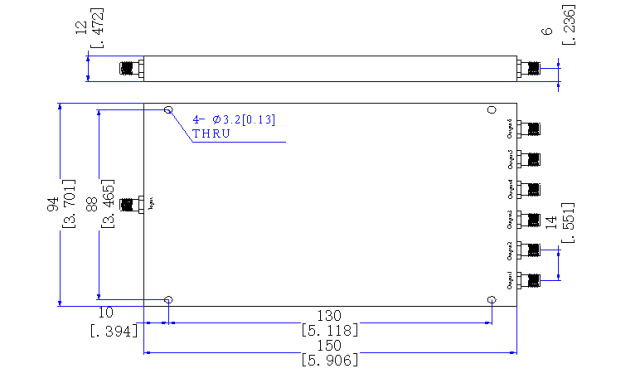

Outline Dimensions:150*94*12（mm）
Weight:385（g）
