Specifications
Frequency Range:600～8000 MHz
Insertion Loss≤2.2dB（Excluding theoretical loss:4.8 dB）
Input Port VSWR:Typ.1.26 / Max.1.5
Output Port VSWR:Typ.1.19 / Max.1.4
Isolation :Typ.26dB / Min.17dB
Amplitude Balance≤ 1.0dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

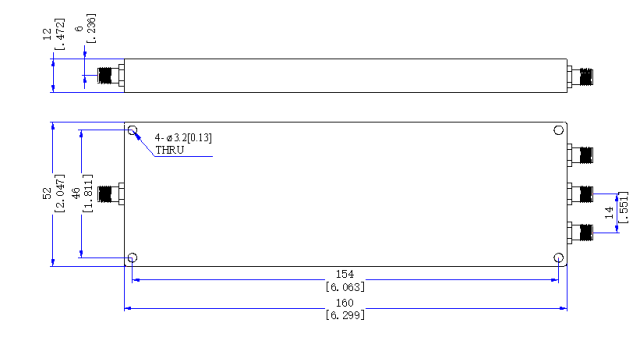

Outline Dimensions:160*52*12（mm）
Weight:260（g）
