Home > All Collections > Others > Power Splitter > 6000～40000 MHz 2.92mm Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 6000～40000 MHz 2.92mm Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 6000～40000 MHz 2.92mm Female Power Divider 50 Ohm Wide-Band Signal Splitter

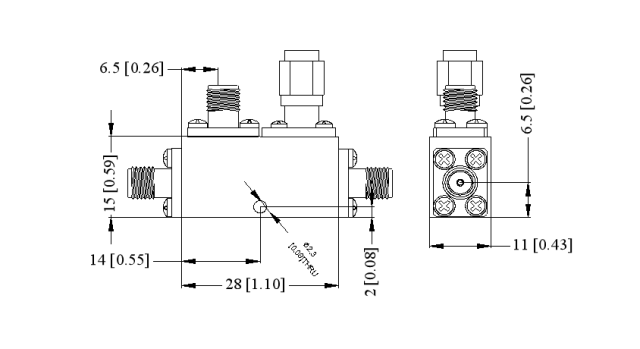

6000～40000 MHz 2.92mm Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-6/40-30K
CONTACT US
  • 6000～40000 MHz 2.92mm Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range :6000～40000 MHz

Insertion Loss≤1.2 dB

VSWR Primary:Type. 1.5 / Max. 1.8

VSWR Secondary:Type. 1.5 / Max. 1.8

Directivity:Min. 10 dB

Frequency Sensitivity:±1.2dB

Nominal Coupling：30±1.9dB

Impedance：50 Ohms

Input/Output Connectors：2.92mm-Female

Power Rating：30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
