Specifications
Frequency Range:698～2700 MHz
Insertion Loss≤0.8dB（Excluding theoretical loss:6.0dB）
Input Port VSWR:Typ.1.15 / Max.1.30
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:N-Female；
Power Rating:Splitter:50W; Combiner:3W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

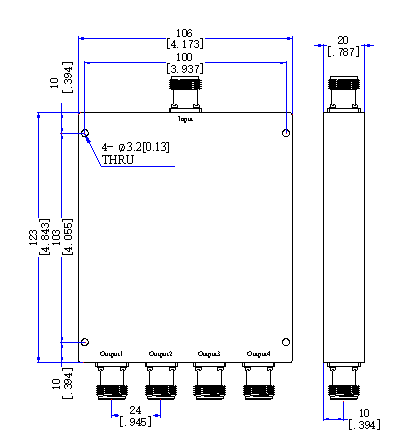

Outline Dimensions:123*106*20（mm）
