Specifications
Frequency Range:70～4200 MHz
Insertion Loss ≤ 5.0dB（Excluding theoretical loss: 3.0 dB）
Input Port VSWR :Typ.1.16 / Max.1.5
Output Port VSWR:Typ.1.12 / Max.1.3
Isolation:Typ.28dB / Min.18dB
Amplitude Balance ≤ 0.3dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Blue paint

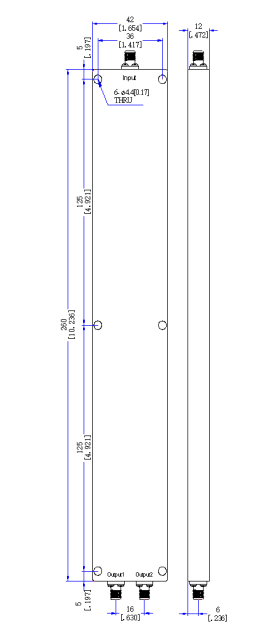

Outline Dimensions:260*42*12（mm）
Weight:300（g）
