Specifications
Frequency Range:700～2700 MHz
Insertion Loss≤1.6dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.18 / Max.1.45
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating:Splitter:200W; Combiner:10W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

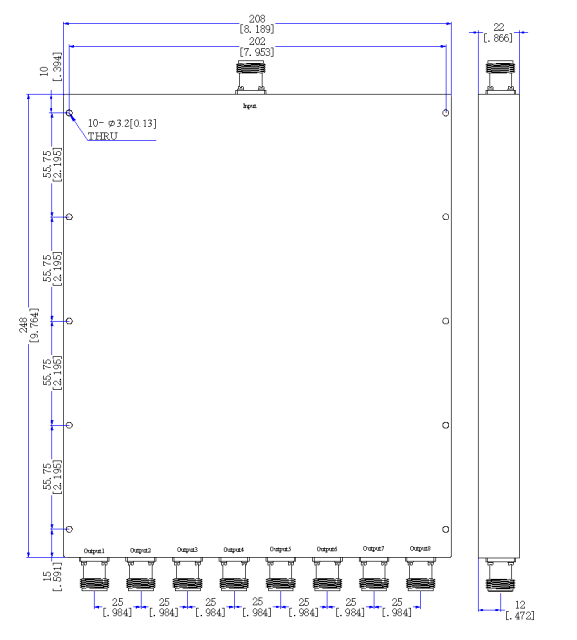

Outline Dimensions:248*208*22（mm）
