Specifications
Frequency Range:800～2500 MHz
Insertion Loss≤0.4 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.16 / Max.1.20
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating:Splitter:100W; Combiner:3W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

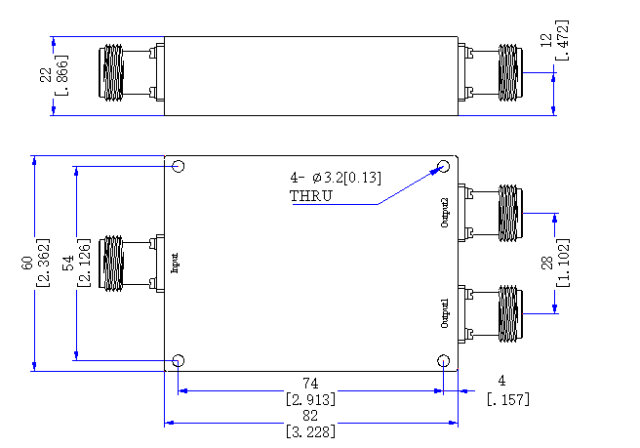

Outline Dimensions:82*60*22（mm）
