Specifications
Frequency Range:800～2500 MHz
Insertion Loss≤1.0dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.16 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating:Splitter:100W; Combiner:3W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

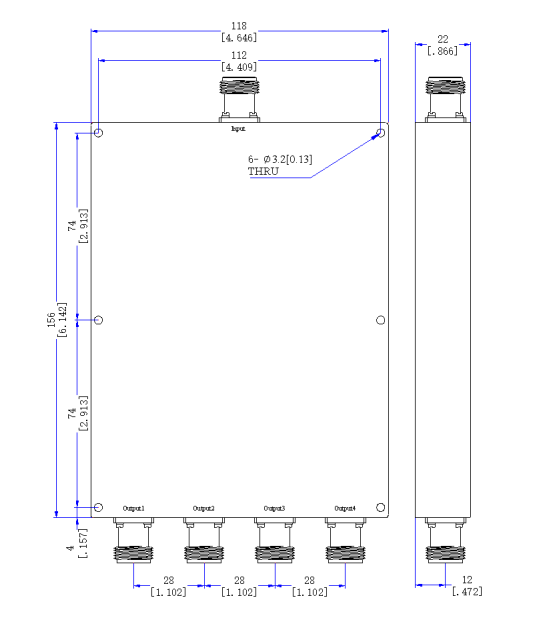

Outline Dimensions:156*118*22（mm）
