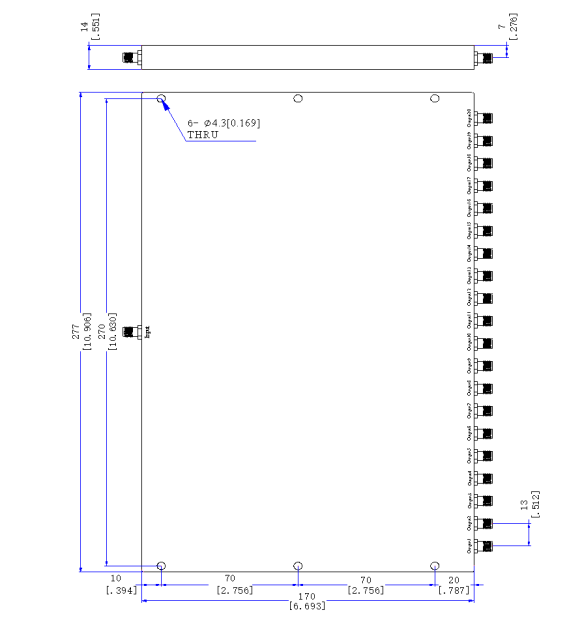

800～2500 MHz SMA Female 20 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.8/2.5-20S
CONTACT US
  • 800～2500 MHz SMA Female 20 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:800～2500 MHz

Insertion Loss≤2.0 dB（Excluding theoretical loss:13.2 dB）

Input Port VSWR:Typ.1.15 / Max.1.5

Output Port VSWR:Typ.1.15 / Max.1.3

Isolation :Typ.26dB / Min.18dB

Amplitude Balance:±0.8dB

Phase Balance:±8°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:30W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide
