Specifications
Frequency Range:800～2500 MHz
Insertion Loss≤1.5dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.45
Output Port VSWR:Typ.1.16 / Max.1.25
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:±0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:50W; Combiner:3W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

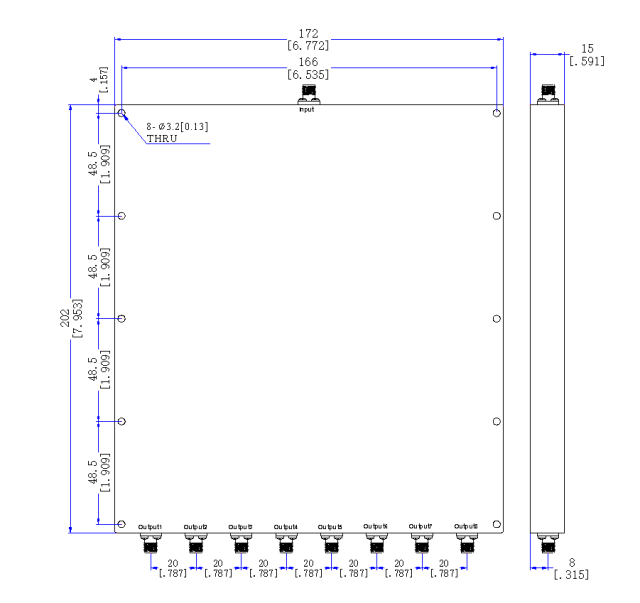

Outline Dimensions:202*172*15（mm）
