800～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.8/6-16S
CONTACT US
  • 800～6000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：800～6000 MHz

Insertion Loss≤3.6dB（Excluding theoretical loss：12.0dB）

Input Port VSWR：Typ.1.25 / Max.1.4

Output Port VSWR：Typ.1.13 / Max.1.3

Isolation：Typ.28dB / Min.18dB

Amplitude Balance:±0.4dB

Phase Balance:±8°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:Splitter:10W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

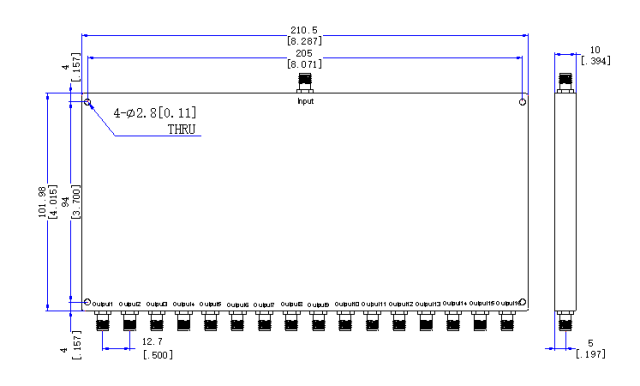

Outline Dimensions:101.98*210.5*10（mm）
