Specifications
Frequency Range:8000～12000 MHz
Insertion Loss ≤ 1.8 dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.20 / Max.1.4
Output Port VSWR:Typ.1.18 / Max.1.3
Isolation:Typ.24dB / Min.20dB
Amplitude Balance:±0.5dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

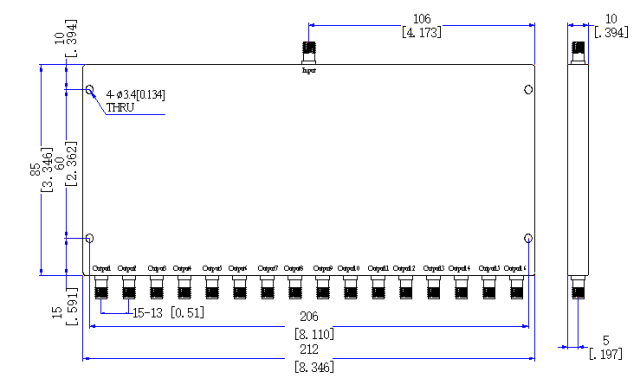

Outline Dimensions:212*85*10（mm）
Weight:480（g）
