Home > All Collections > Others > Power Splitter > 8000～12000 MHz SSMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 8000～12000 MHz SSMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 8000～12000 MHz SSMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

8000～12000 MHz SSMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-8/12-3SS
CONTACT US
  • 8000～12000 MHz SSMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:8000～12000 MHz

Insertion Loss≤ 1.0 dB（Excluding theoretical loss:4.8dB）

Input Port VSWR:Typ.1.18 / Max.1.4

Output Port VSWR:Typ.1.15 / Max.1.4

Isolation:Typ.26dB / Min.18dB

Amplitude Balance:±0.5dB

Phase Balance:±5°

Impedance:50 Ohms

Input/Output Connectors:SSMA-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

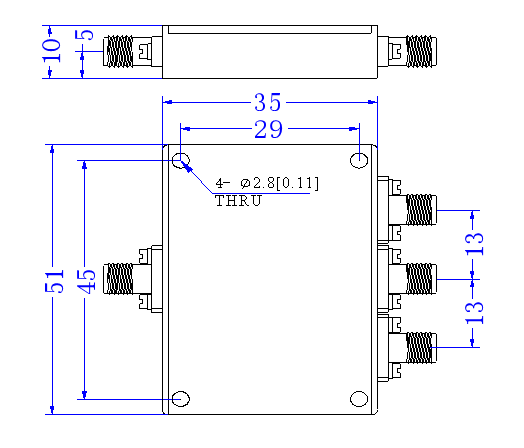

Outline Dimensions:51*35*10（mm）
