Specifications
Frequency Range:9200～9800 MHz
Insertion Loss ≤ 2.0dB（Excluding theoretical loss:15.0dB）
Input Port VSWR:Typ.1.22 / Max.1.50
Output Port VSWR:Typ.1.16 / Max.1.25
Isolation:Typ.24dB / Min.18dB
Amplitude Balance: ±0.4dB
Phase Balance :±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

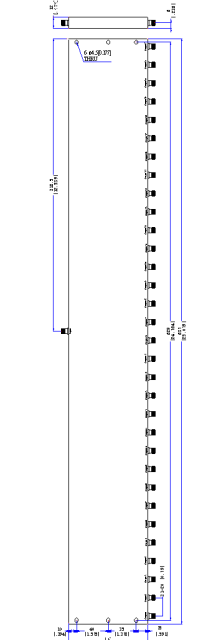

Outline Dimensions :637*100*12（mm）
