Specifications
Frequency Range:9500～12000 MHz
Insertion Loss ≤ 1.4 dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.24 / Max.1.4
Output Port VSWR:Typ.1.18 / Max.1.3
Isolation:Typ.24dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance :±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

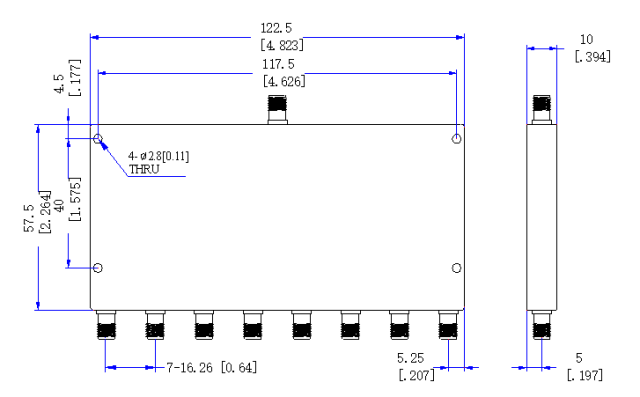

Outline Dimensions :57.5*122.5*10（mm）
Weight:190（g）
