DC～2000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/2-4S1
CONTACT US
  • DC～2000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:DC～2000 MHz

Insertion Loss≤ 13.8 dB

Input Port VSWR:Typ.1.11 / Max.1.20

Output Port VSWR:Typ.1.11 / Max.1.20

Isolation:Min.6.0dB

Amplitude Balance:± 0.4dB

Phase Balance:±4°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide

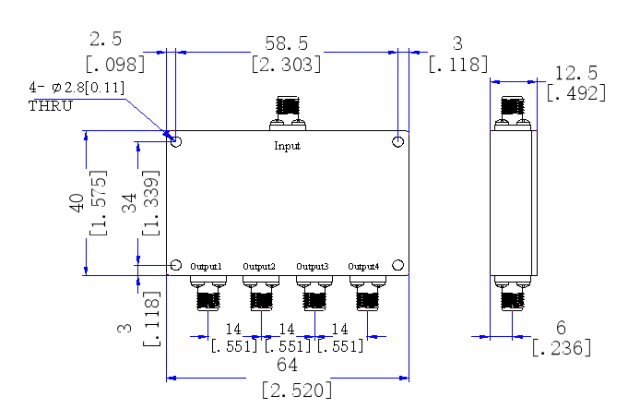

Outline Dimensions :40*64*12.5（mm）

Weight:85（g）
