Home > All Collections > Others > Power Splitter > DC～2000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～2000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～2000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

DC～2000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/2-8S
CONTACT US
  • DC～2000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：DC～2000 MHz

Insertion Loss≤ 19.0dB

Input Port VSWR：Typ.1.09 / Max.1.15

Output Port VSWR：Typ.1.08 / Max.1.15

Isolation：Min.17.5dB

Amplitude Balance：±0.3dB

Phase Balance：±3°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

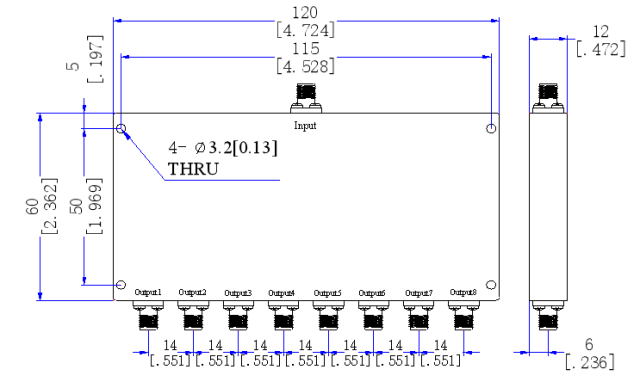

Outline Dimensions ：120*60*12（mm）

Weight：220（g）
