Home > All Collections > Antennas > GPS Antennas > DC～26500 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～26500 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～26500 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

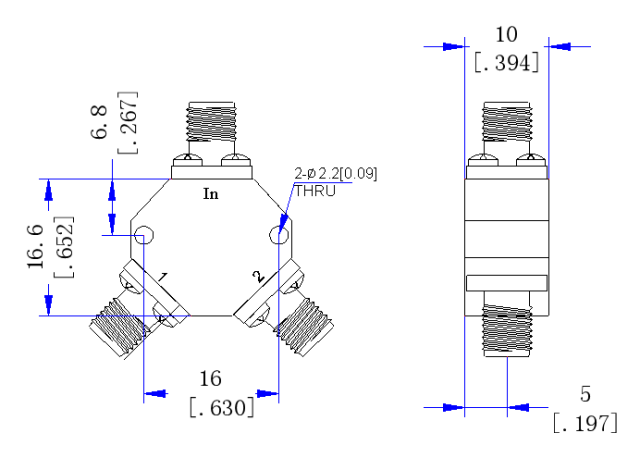

DC～26500 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/26.5-2S
CONTACT US
  • DC～26500 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range ：DC～26500 MHz

Insertion Loss≤ 8.0 dB

Input Port VSWR：Typ.1.20 / Max. 1.5

Output Port VSWR：Typ.1.35 / Max. 2.5

Isolation：Min.8dB

Amplitude Balance：±0.3dB

Phase Balance：±4°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃
