Home > All Collections > Others > Power Splitter > DC～3000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • DC～3000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

DC～3000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-DC/3-3S
CONTACT US
  • DC～3000 MHz SMA Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:DC～3000 MHz

Insertion Loss≤ 10.2 dB

Input Port VSWR:Typ.1.14 / Max.1.25

Output Port VSWR:Typ.1.14 / Max.1.25

Isolation:Min.8.9dB

Amplitude Balance:± 0.3dB

Phase Balance:±3°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing Black paint

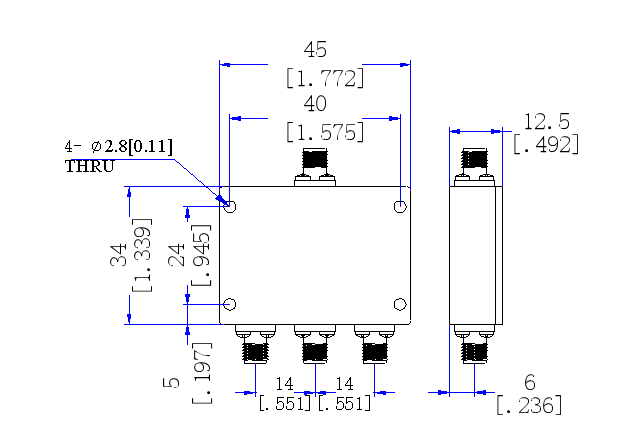

Outline Dimensions:34*45*12.5（mm）

Weight:55（g）
